Ford Ranger Reverse Piggyback Loom (PX1,PX2,PX3)

Plug & Play Reverse Piggyback Loom for Ford Ranger PX1, PX2 & PX3

Add additional reverse lights to your Ford Ranger without cutting factory wiring. This reverse piggyback loom taps directly into your existing rear light circuit, giving you a clean, professional installation for improved visibility when reversing.

What's Included

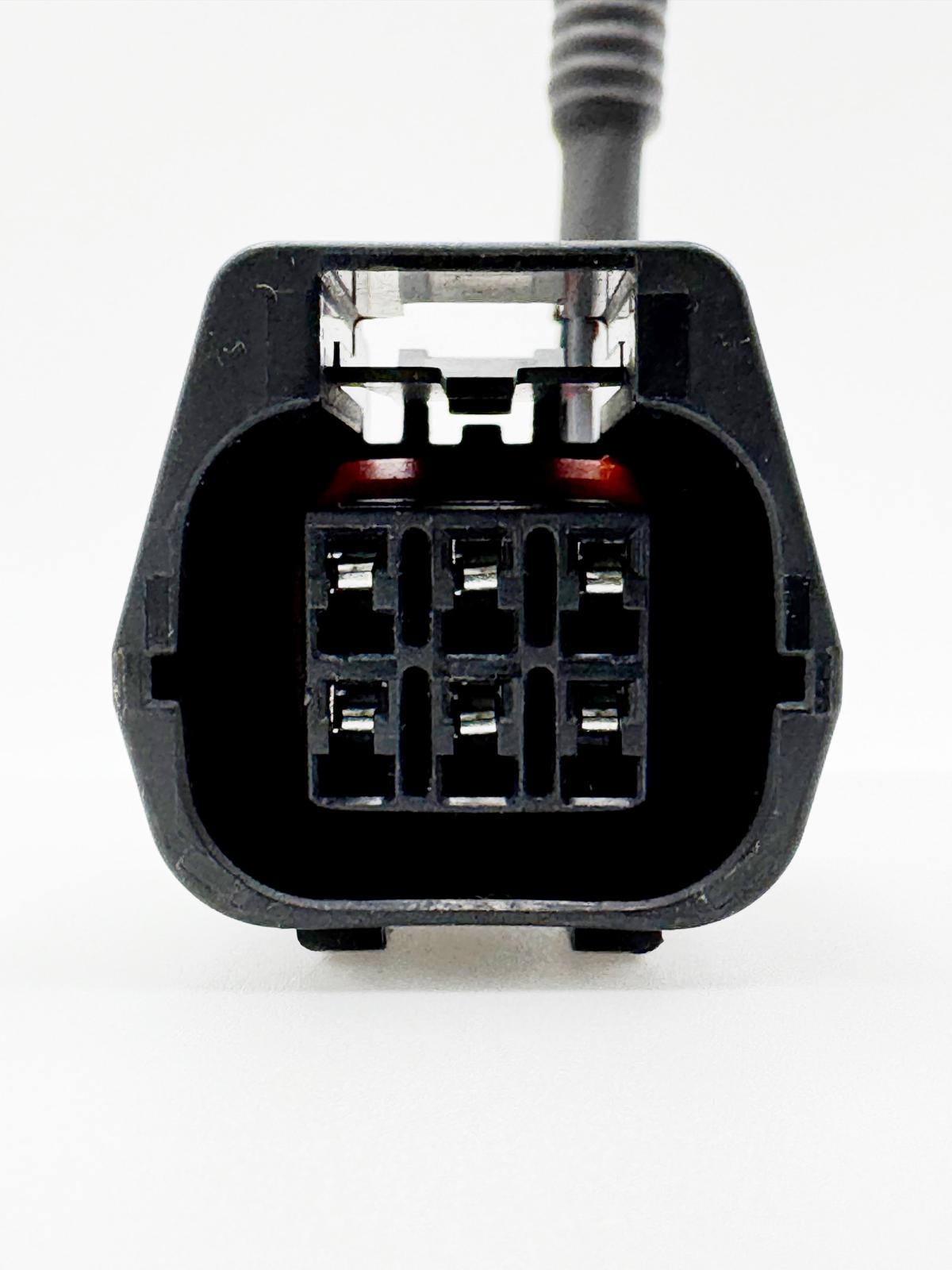

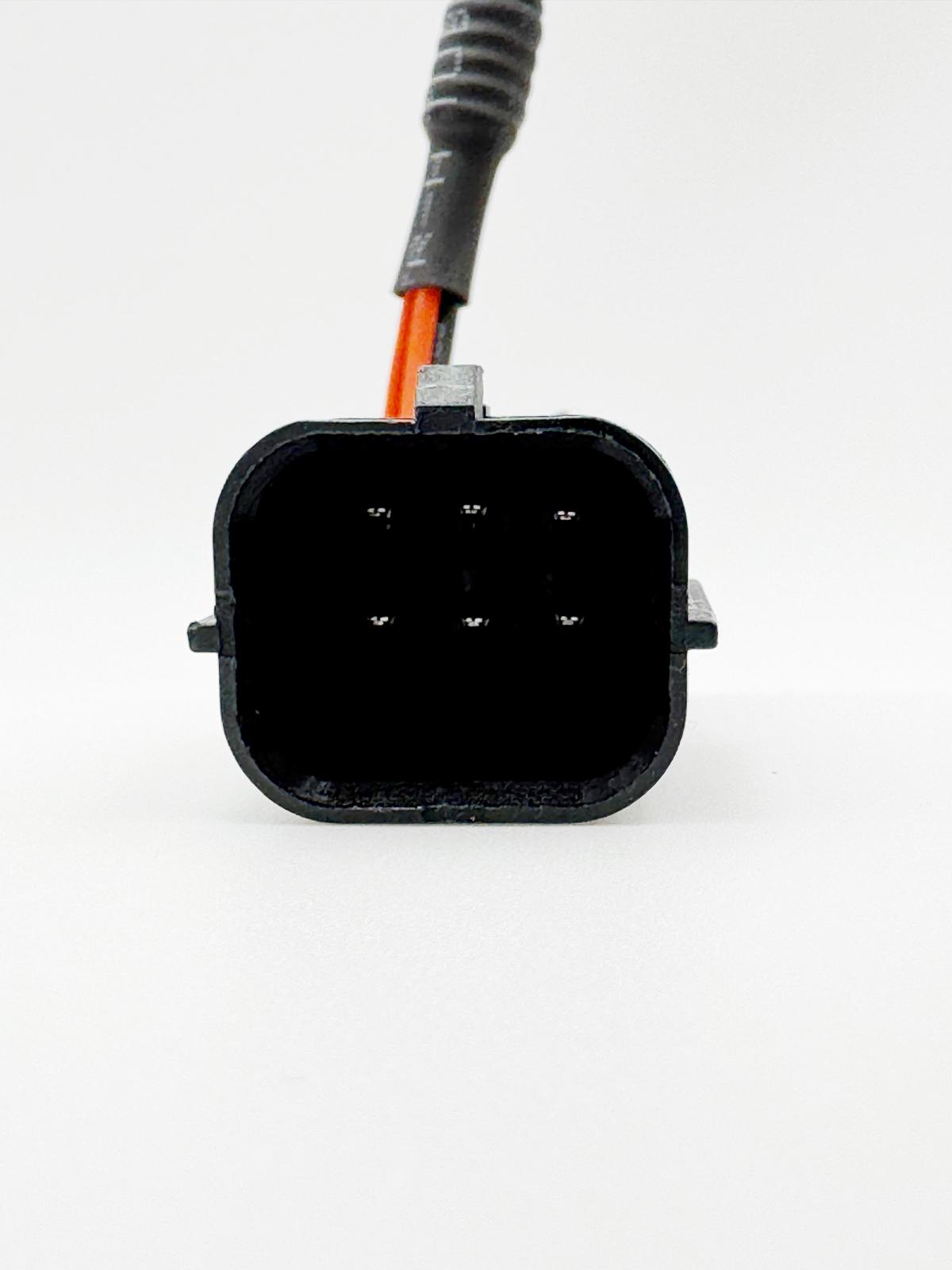

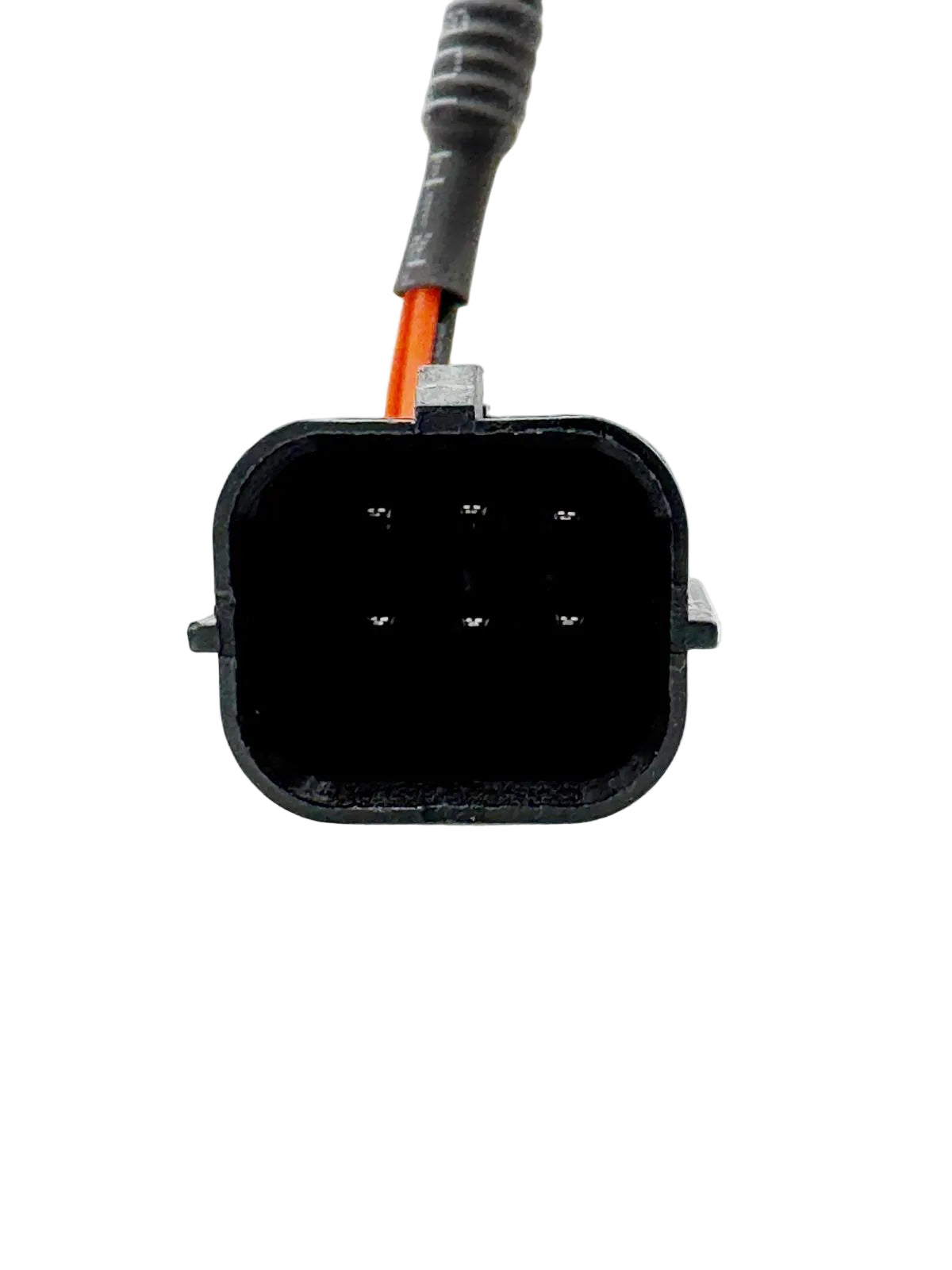

• Pre-wired piggyback harness with weatherproof connectors
• Reverse light trigger connection
• Switched 12V output for auxiliary reverse lights
• Installation instructions

Key Features

• No cutting required – Plugs directly into your factory rear light connector
• Automatic activation – Auxiliary reverse lights switch on/off when you select reverse gear
• Weatherproof connectors – Built to handle UK weather and off-road conditions
• Easy installation – 15-20 minute install, basic tools only
• Reversible – Remove without trace if needed
• Relay-ready design – Compatible with relays for higher-output lights

Compatibility

Designed specifically for Ford Ranger PX1 (2011-2015), PX2 (2016-2018), and PX3 (2019-2022). Fits all variants including XL, XLT, Wildtrak, and Raptor models.

Important: This loom does NOT fit Next Gen Ford Rangers (2022 onwards). If you have a 2022+ model, please contact us for the correct loom.

Technical Specifications

• Maximum load: Suitable for LED reverse lights up to 40W (relay recommended for lights over 40W)
• Wire gauge: Automotive-grade copper wiring
• Connector type: OEM-style weatherproof plugs

Note: Relays may be required depending on the wattage of your auxiliary reverse lights. For lights over 40W, we recommend using a relay to protect your vehicle's electrical system and ensure reliable operation.

Why Choose AutoLux Looms?

Every loom is hand-assembled in the UK and tested before dispatch. We focus on quality connections and practical solutions—no hype, just reliable wiring that works.
