Ford Ranger High Beam Piggyback Loom (PX2, PX3)

Plug & Play Piggyback Loom for Ford Ranger PX2 & PX3

Add auxiliary driving lights to your Ford Ranger PX2 or PX3 without cutting factory wiring. This piggyback loom taps directly into your existing high beam circuit, giving you a clean, professional installation that won't void your warranty.

What's Included

• Pre-wired piggyback harness with weatherproof connectors
• High beam trigger connection
• Switched 12V output for auxiliary lights
• Installation instructions

Key Features

• No cutting required – Plugs directly into your factory headlight connector
• Automatic activation – Auxiliary lights switch on/off with your high beams
• Weatherproof connectors – Built to handle UK weather and off-road conditions
• Easy installation – 15-20 minute install, basic tools only
• Reversible – Remove without trace if needed
• Relay-ready design – Works with standard automotive relays for safe operation

Compatibility

Designed specifically for Ford Ranger PX2 (2016-2018) and PX3 (2019-2022). Fits all variants including XL, XLT, Wildtrak, and Raptor models.

Important: This loom does NOT fit Next Gen Ford Rangers (2022 onwards). If you have a 2022+ model, please contact us for the correct loom.

Technical Specifications

• Maximum load: Suitable for LED light bars up to 320W when used with appropriate relay
• Wire gauge: Automotive-grade copper wiring

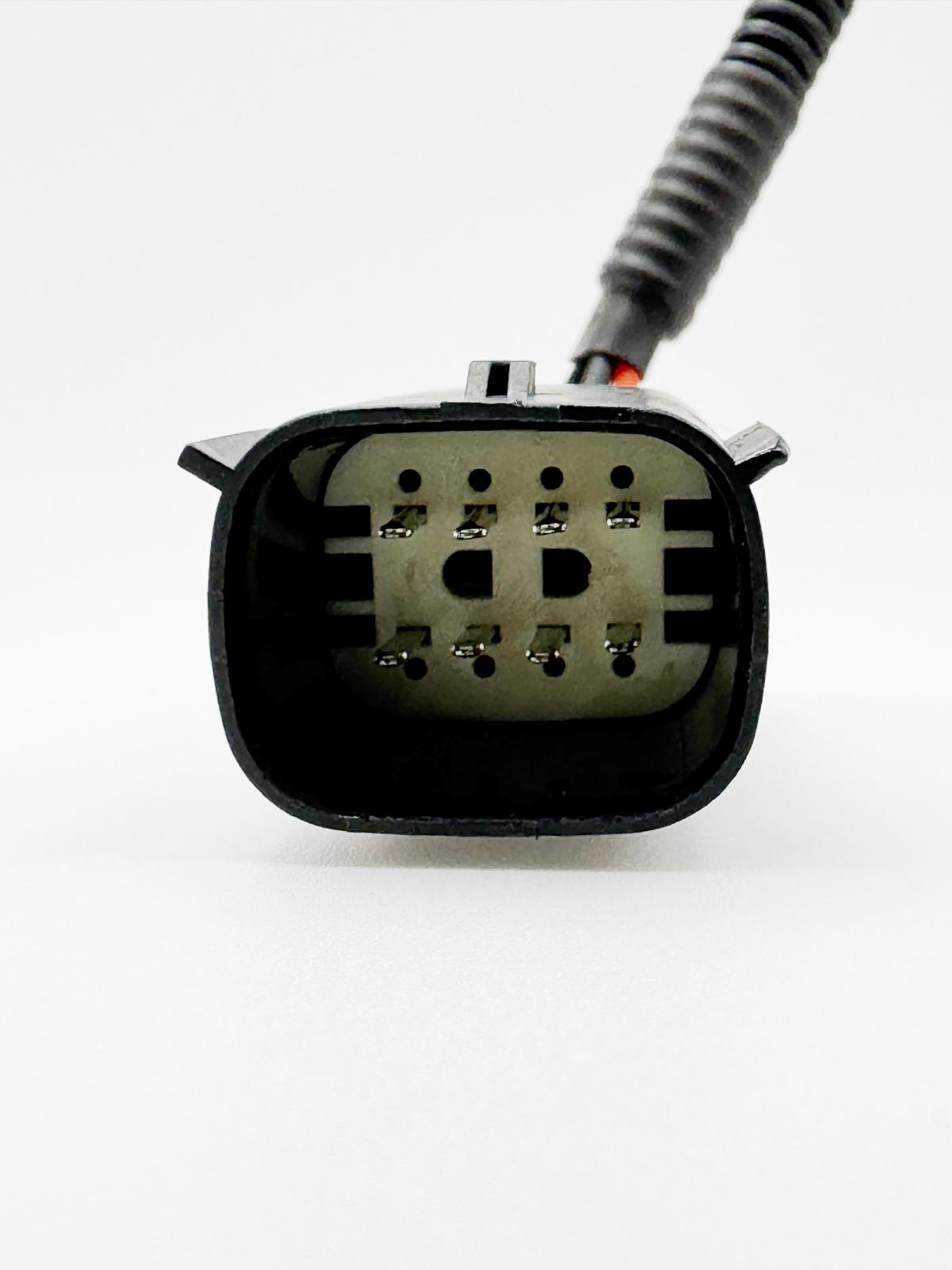

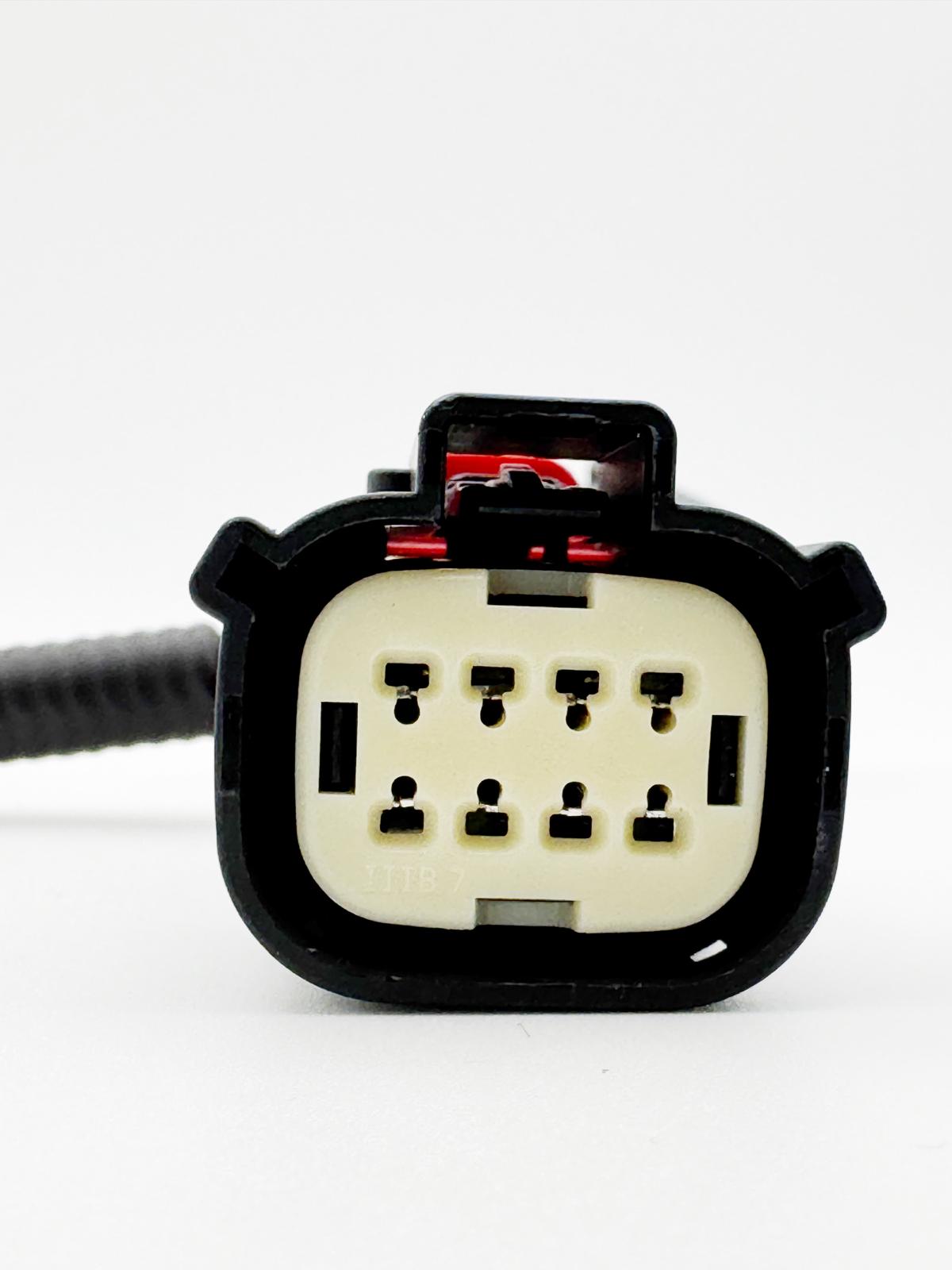

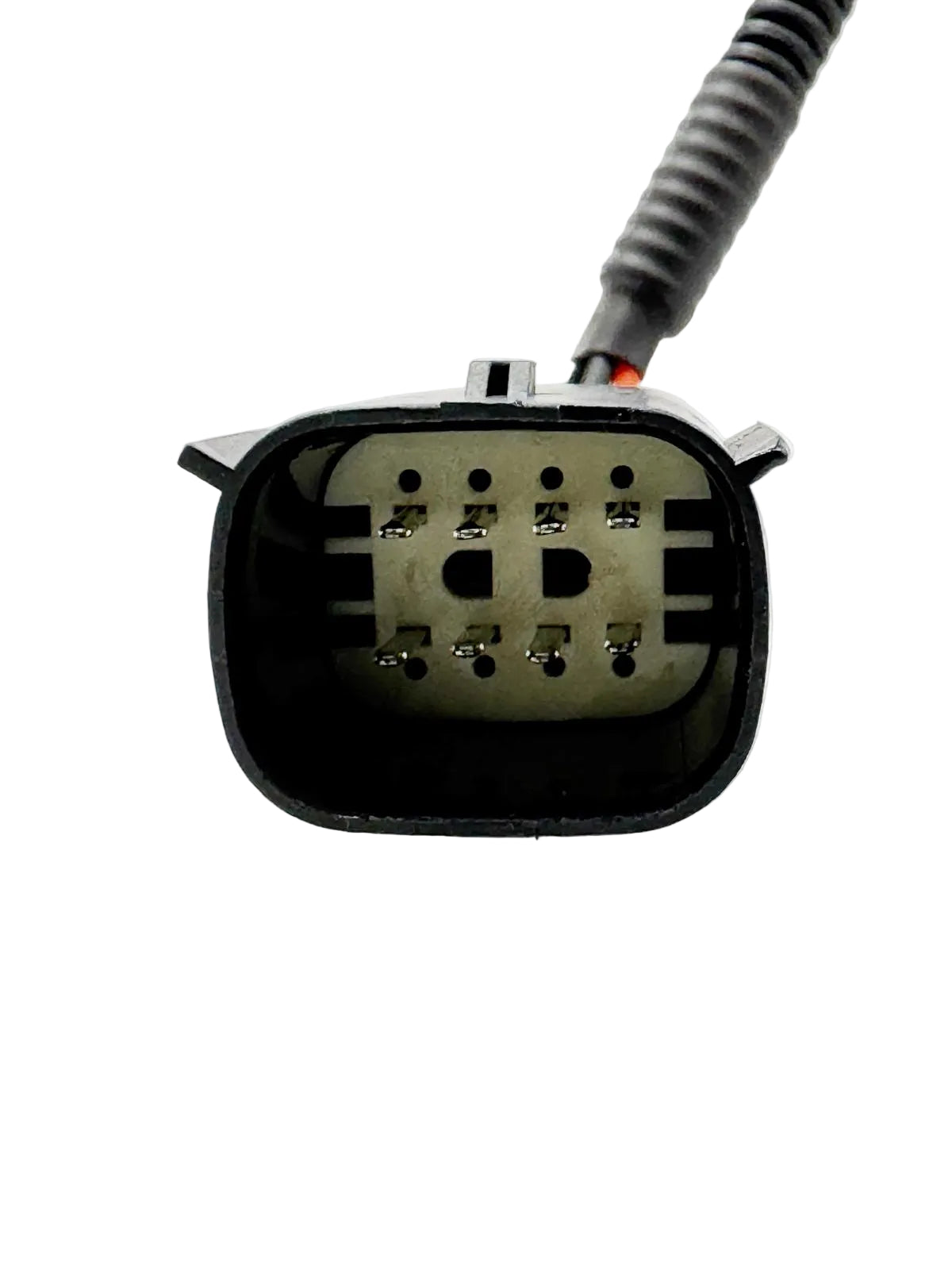

• Connector type: OEM-style weatherproof plugs

Note: This loom requires a relay for installation. Relays protect your vehicle's electrical system and ensure reliable operation of your auxiliary lights. We recommend using a 40A automotive relay (see our relay-included version).

Why Choose AutoLux Looms?

Every loom is hand-assembled in the UK and tested before dispatch. We focus on quality connections and practical solutions—no hype, just reliable wiring that works.
