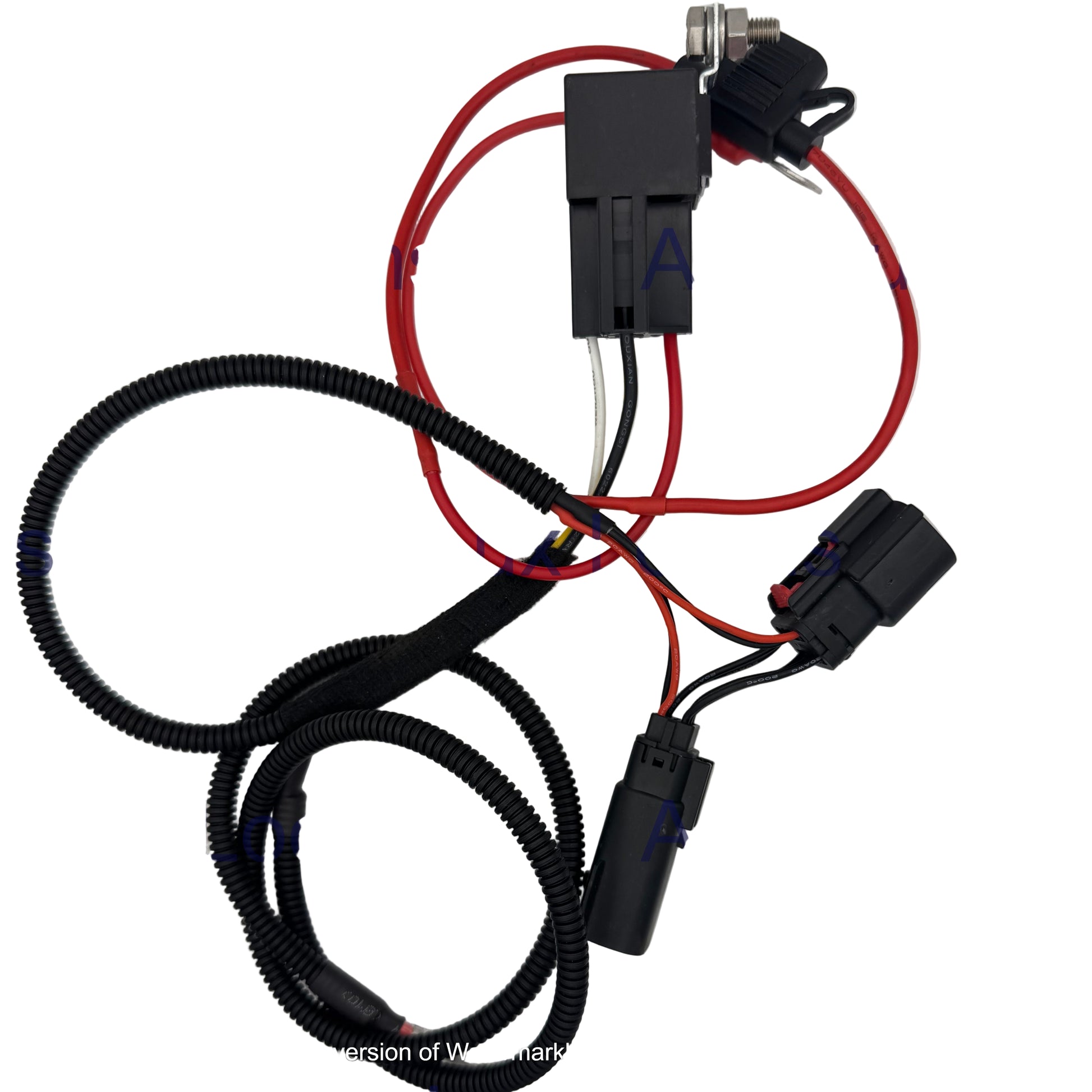

Complete Plug & Play Piggyback Loom Kit for Ford Ranger PX2 & PX3
Add auxiliary driving lights to your Ford Ranger PX2 or PX3 with this complete solution—piggyback loom and relay included. No cutting factory wiring, no sourcing additional parts. Everything you need for a professional installation in one package.
What's Included
- Pre-wired piggyback harness with weatherproof connectors
- High beam trigger connection
- 40A automotive relay (pre-wired and ready to install)
- Switched 12V output for auxiliary lights
- Installation instructions
Key Features
- Complete kit – Relay included, no additional parts needed
- No cutting required – Plugs directly into your factory high beam connector
- Automatic activation – Auxiliary lights switch on/off with your high beams
- Weatherproof connectors – Built to handle UK weather and off-road conditions
- Easy installation – 20-30 minute install, basic tools only
- Reversible – Remove without trace if needed
- Higher wattage support – Relay allows safe operation of higher-power lights
Compatibility
Designed specifically for Ford Ranger PX2 (2016-2018) and PX3 (2019-2022). Fits all variants including XL, XLT, Wildtrak, and Raptor models.
Important: This loom does NOT fit Next Gen Ford Rangers (2022 onwards). If you have a 2022+ model, please contact us for the correct loom.
Technical Specifications
- Maximum load: Suitable for LED light bars up to 320W with included relay
- Relay rating: 40A automotive relay (pre-wired)
- Wire gauge: Automotive-grade copper wiring
- Connector type: OEM-style weatherproof plugs
Why include a relay? The relay protects your vehicle's electrical system by switching the high-current load away from the factory wiring. This ensures reliable operation and prevents potential damage to your Ranger's electrical components—especially important for higher-wattage LED light bars.
Why Choose AutoLux Looms?
Every loom is hand-assembled in the UK and tested before dispatch. We focus on quality connections and practical solutions—no hype, just reliable wiring that works.
