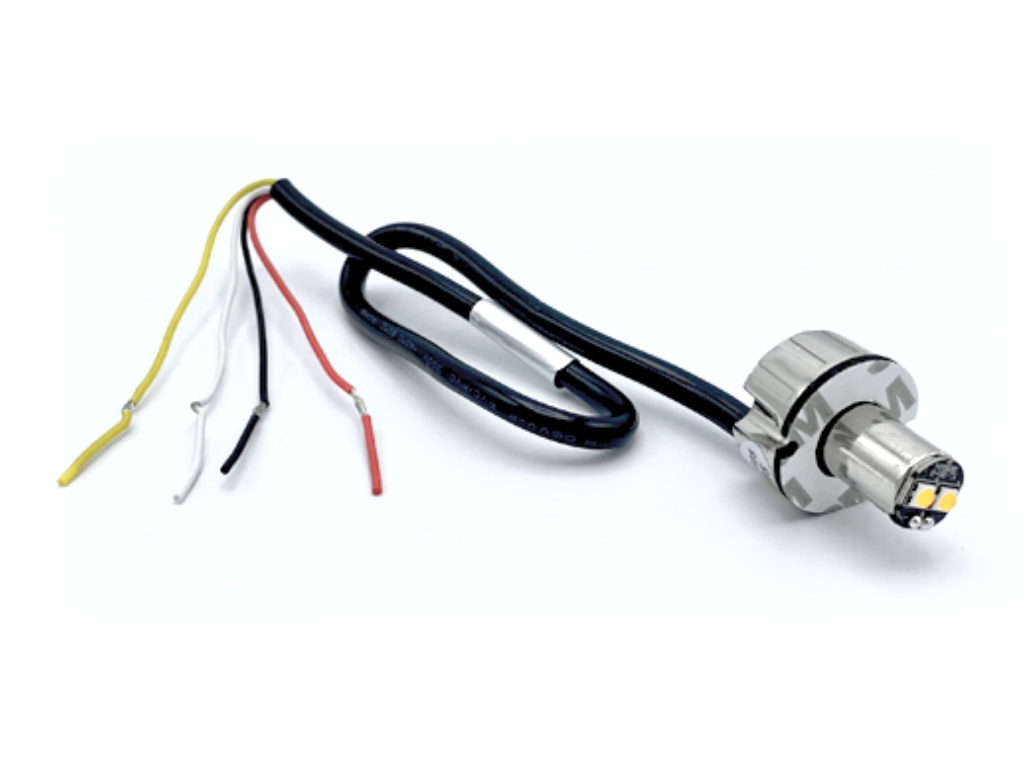

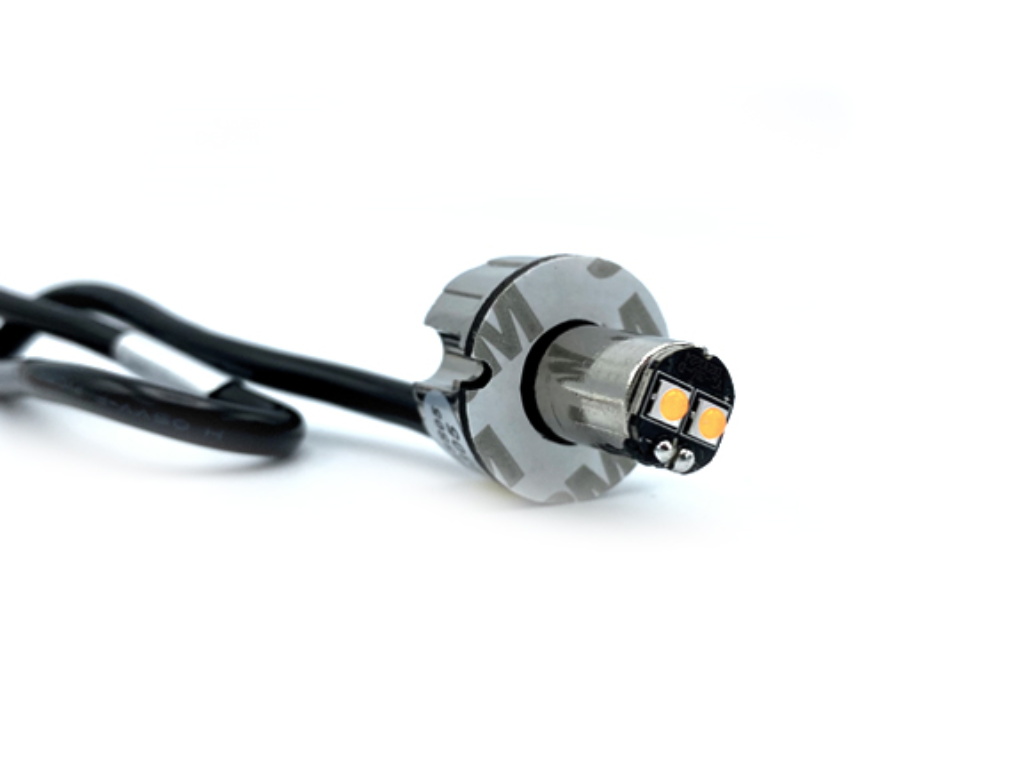

Van master 18mm 12/24v Light Cluster Hideaway LED

Our Hideaway Covert LED range may be super discreet, but with two large LED chips per lighthead they certainly get noticed! These are E-marked, CE and ECE EMC R10 approved. A small 13mm hole is required to install these lights, they can be easy fitted into vehicle headlights / rear light clusters with the pre installed 3M self adhesive gasket (screw fitting is also an option, screws not provided).

• Up to 100,000 hours rated Long-Life LED;
• Supplied with pre-installed 3M self adhesive gasket;
• Built in selectable flash patterns;
• Memory recall for last flash pattern used at power up;
• Reverse polarity protection;
• Generation III 3W LEDs;
• 2 grouping option for flash patterns, multiple lights can be set to flash at the same time or alternate;
• Warranty: 3 Year;
• Multi Voltage input 12-24VDC
• 2 x High Power LEDs
• 21 Flash Patterns
• Up to 12 Unit Synchronisation
• 2A Fuse Recommended
• Wire: Red - Positive
•           Black - Negative
•           Yellow - Flash Patterns & Sync
•           White - Low Intensity

APPROVALS:

UKCA, CE, E-Marked, ECE R10, CISPR 25 Class3;

DIMENSIONS:

Light unit (mm):
           W:12 x H:32 x Base W:26
           Shaft Length: 18
Cable Length (mm): 350
