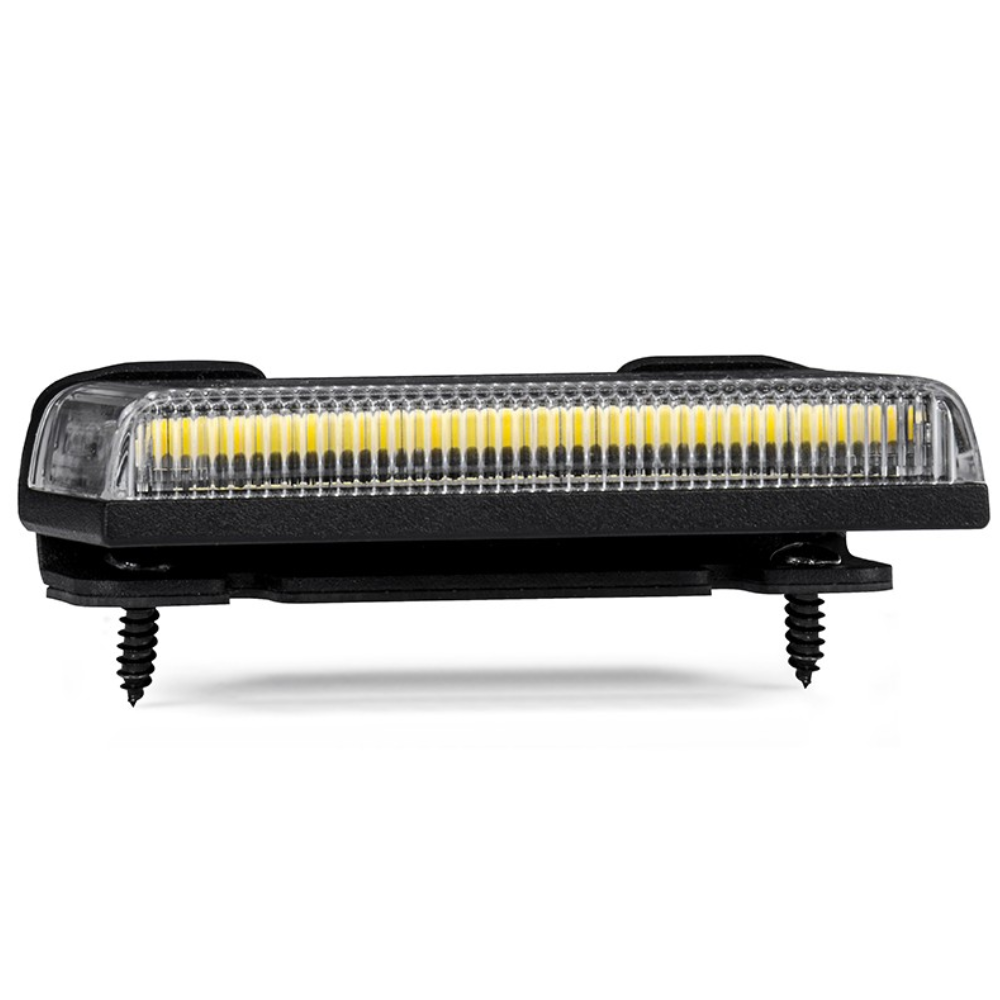

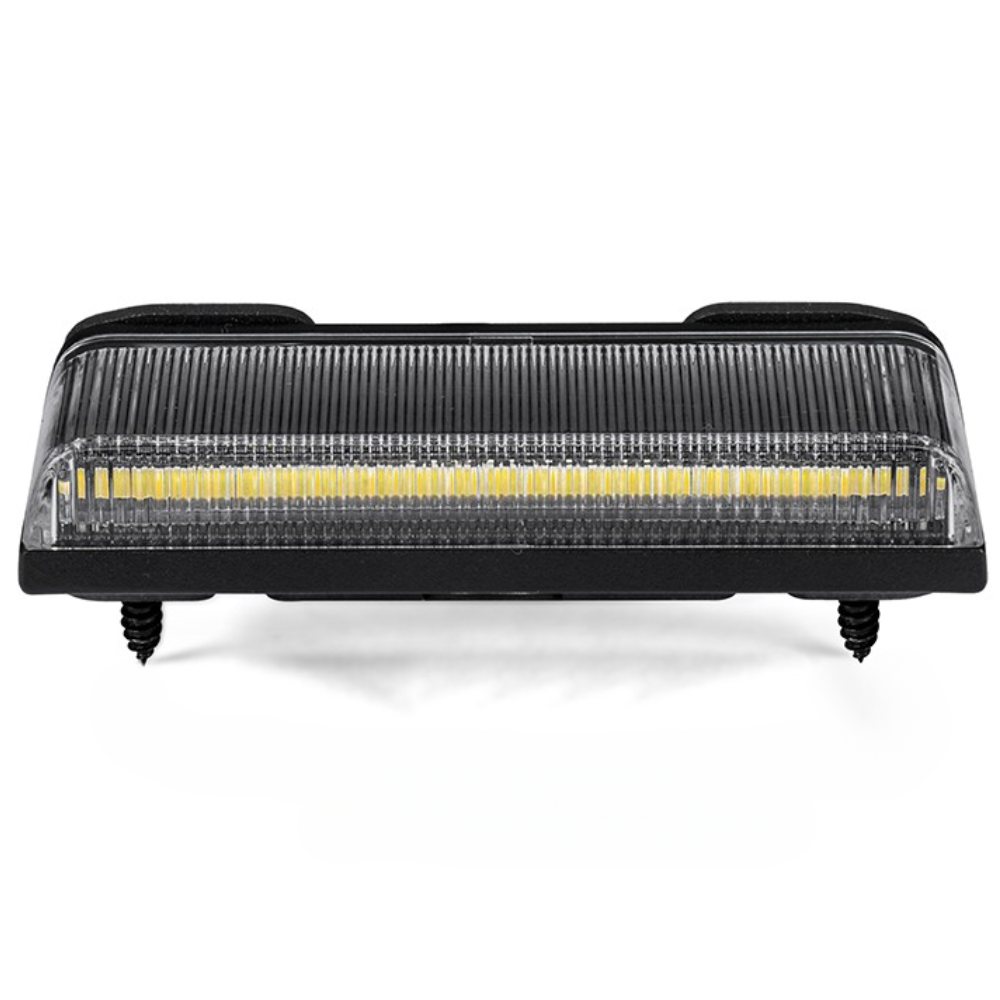

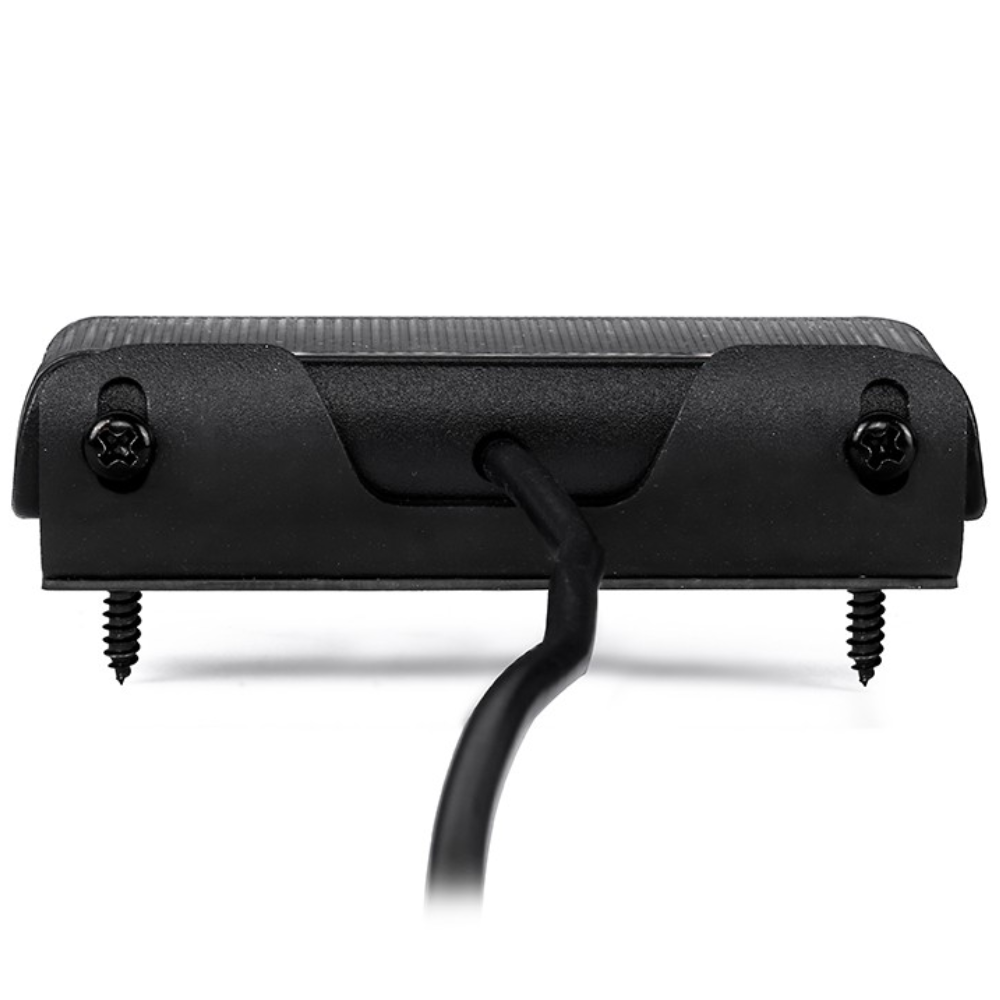

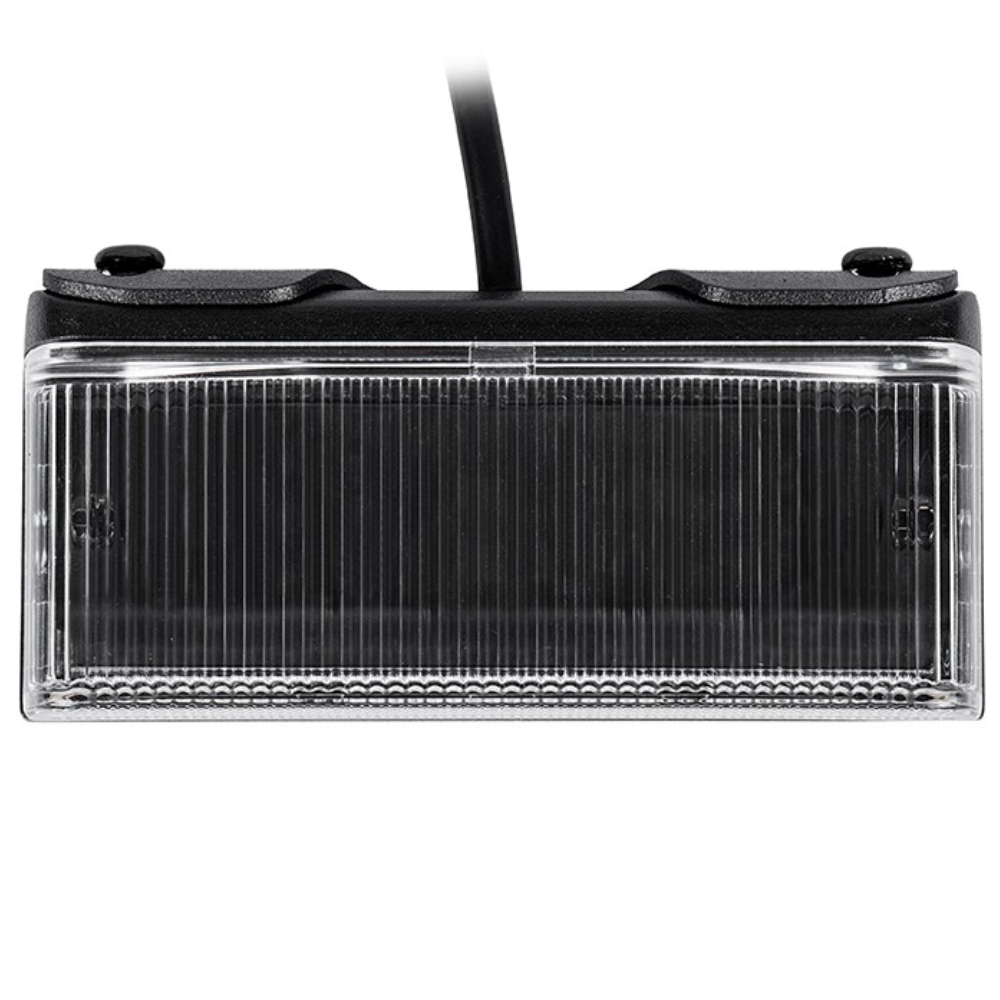

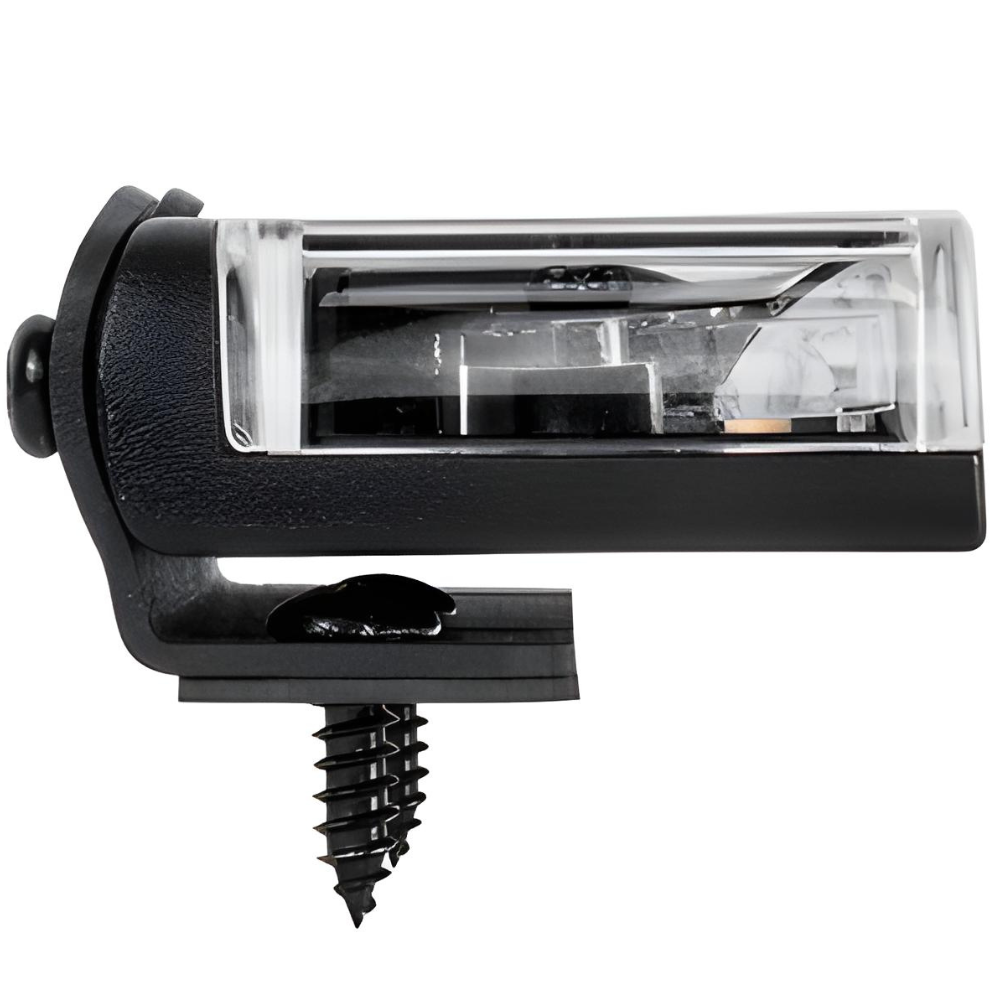

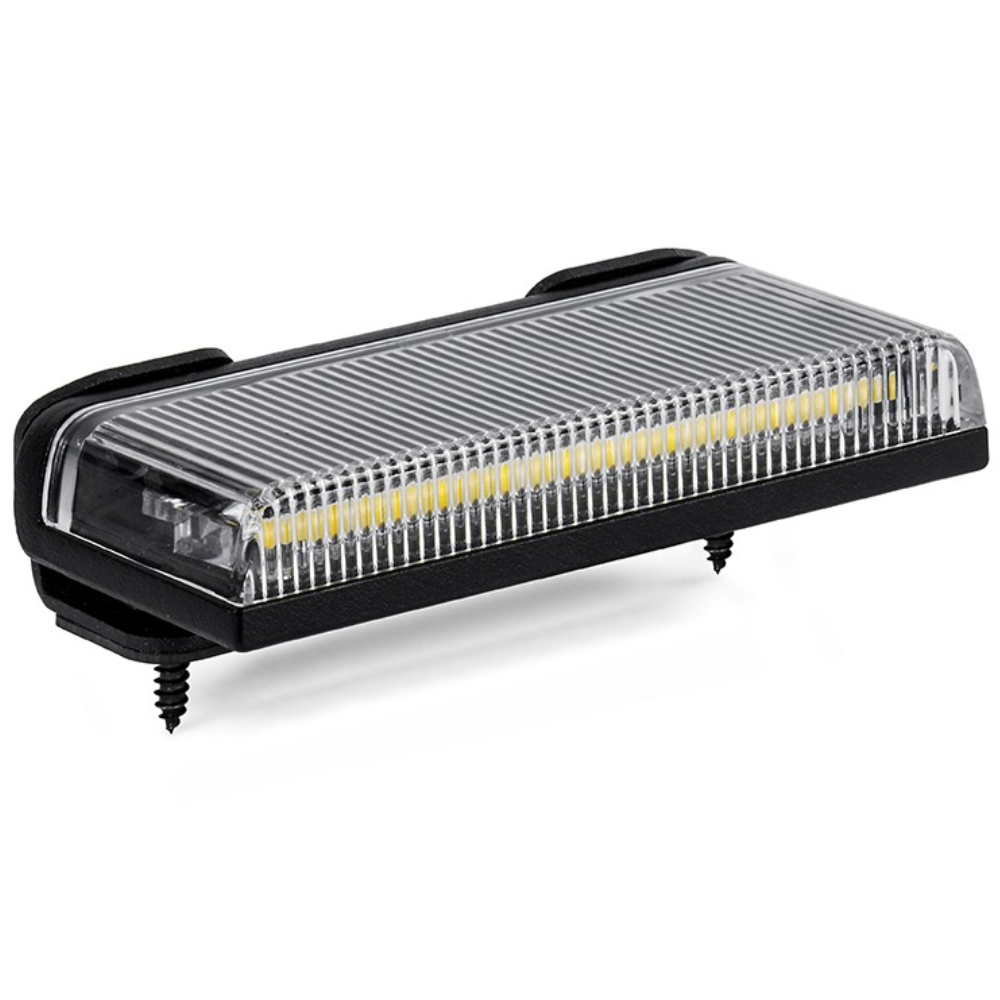

Van Master Atom Discreet R23 Reverse Light

Don’t let its discreet size fool you! This ultra-slim LED reversing light packs a punch. Roughly the size of a credit card (90 × 40 × 15 mm) yet delivering nearly 1,400 lumens, it throws a wide, evenly spread beam reaching up to 35 m at 1 lux. Its neutral 5700 K colour tone offers clear, eye-friendly visibility in darkness.

Built for tight and discreet mounting—under bumpers, on the roof, or hidden in vehicle frames—the Atom is IP67-rated and resistant to water, dust, corrosion, extreme temperatures (−40°C to +60°C), UV exposure, and road salt. It operates across 10-30 V DC systems (12 V and 24 V compatible), is E-approved (R148 reverse-light and R10 EMC compliant), and comes with a 2-year warranty.

Ideal for tight-space installations on ATVs, passenger cars, work machines, and wherever powerful performance is needed in a slim, stealthy package.

Technical Specifications:
Reverse Light Range: 35 m (1 lux)
Lumen: Theoretical 2900 (Actual 1384)
E-marking: ECE R23/R148, R65
Beam Spread: 120° flood beam
Colour Temperature: 5700K
Power: 20.8W (23 x Osram LEDs)
IP Rating: IP69K
Voltage: 10-30V DC
EMC Certified: ECE R10
3-year Warranty
Amps 12/24V (1.55/.87)
50cm two-core cable (with bare tails)

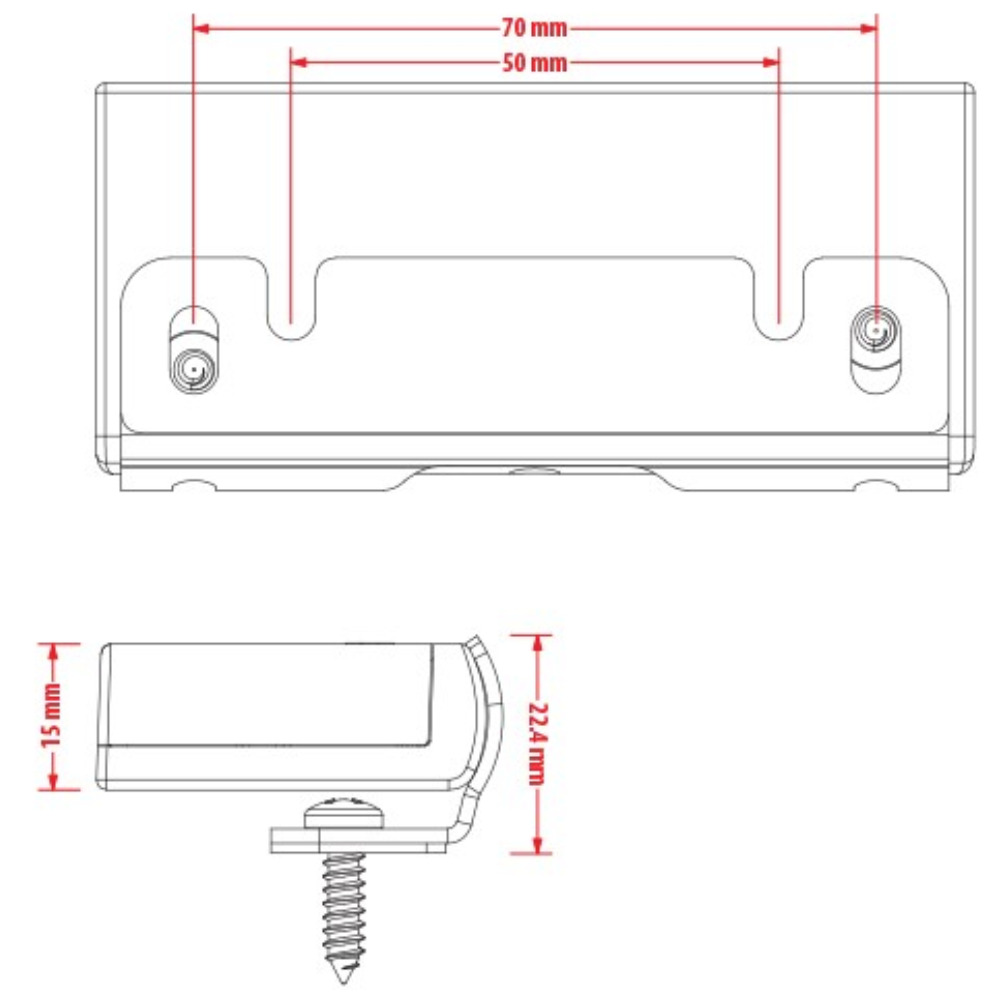

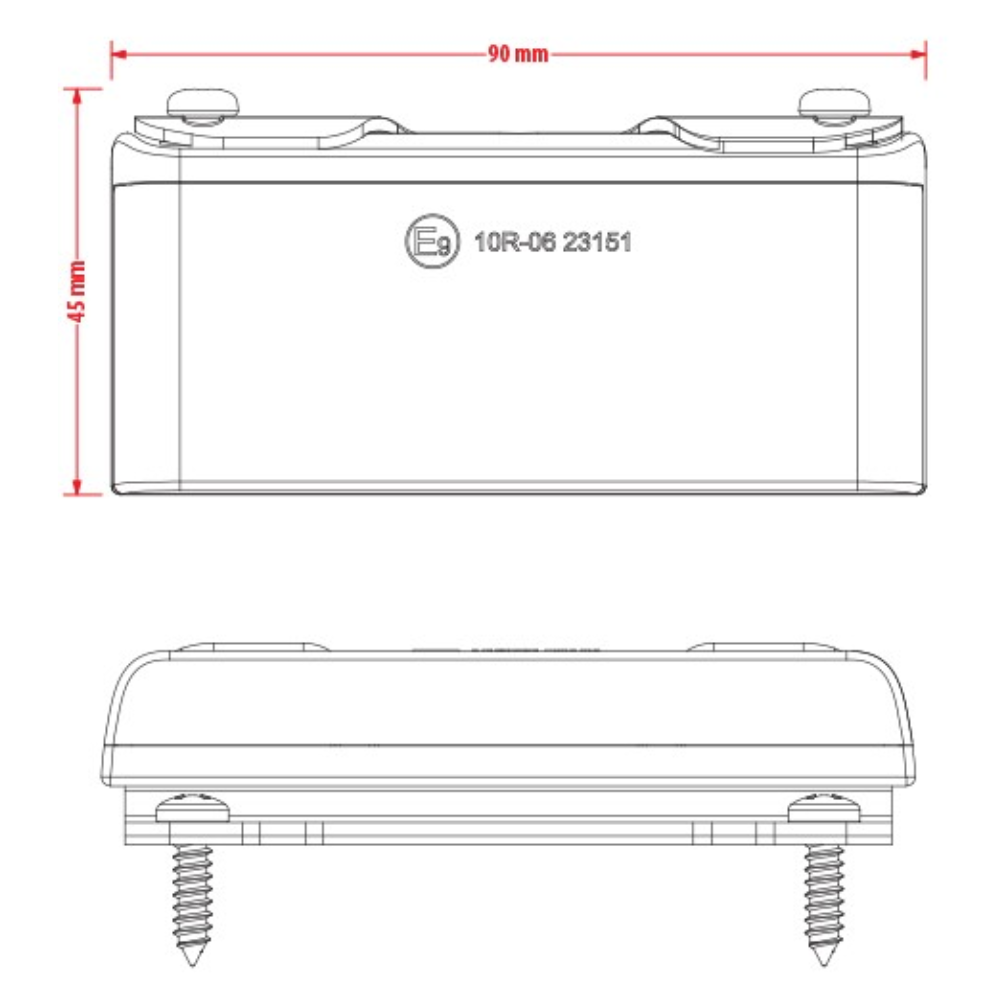

Dimensions:
Width: 90 mm
Height: 15mm (22.4mm with bracket)
Depth: 45 mm

Cable colours:
Black: Ground
Red: Reverse light
