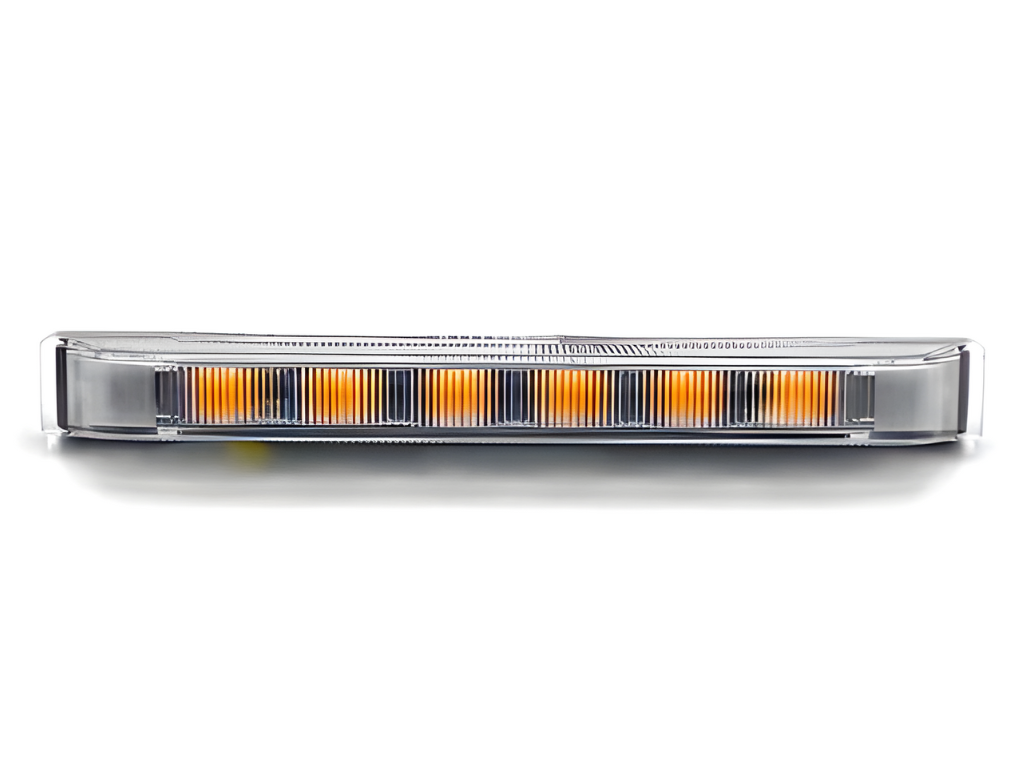

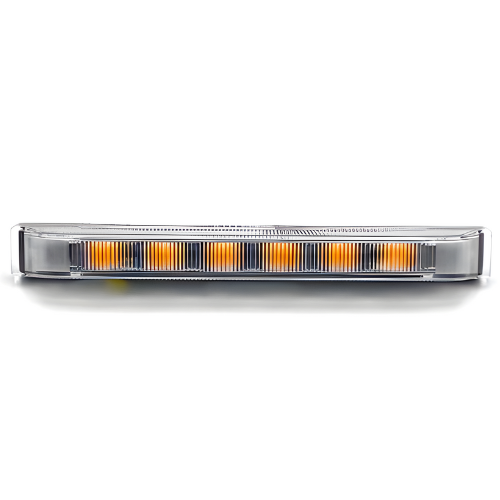

Van Master Slim Amber 6 LED Grill Warning Light

• Multi Voltage input 9-30VDC.

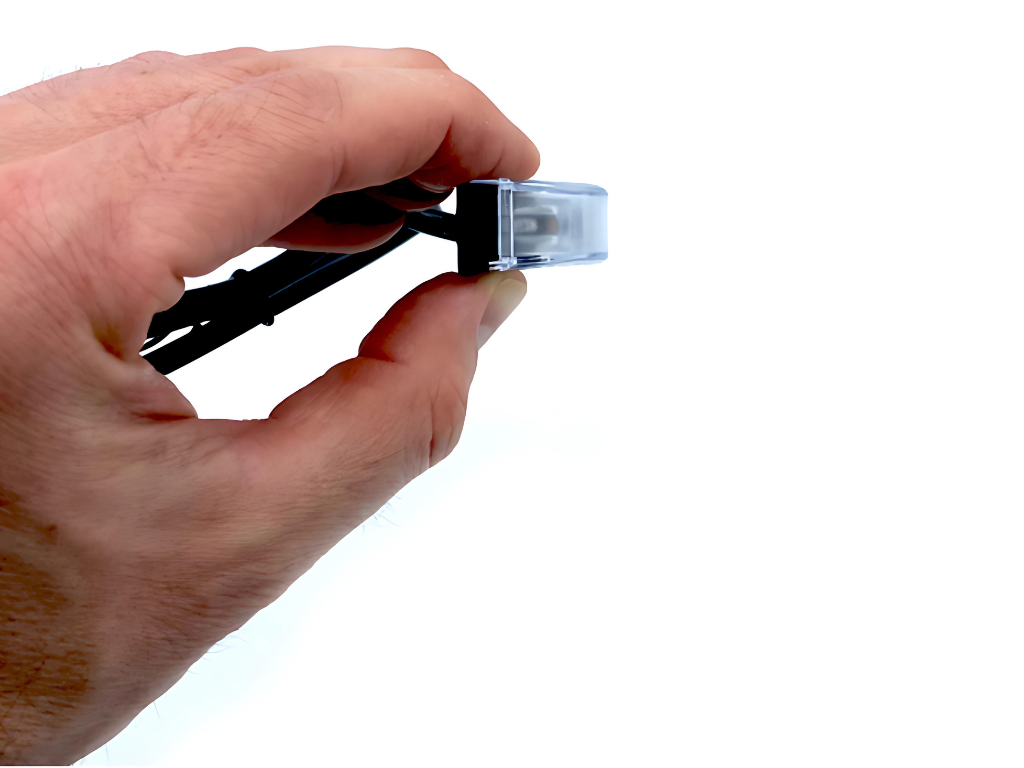

• Super thin profile, single row of 4 or 6 LED.
• Mount: Horizontal.
• 21 Flash Patterns.
• Sync up to 14 lights in 2 separate groups.

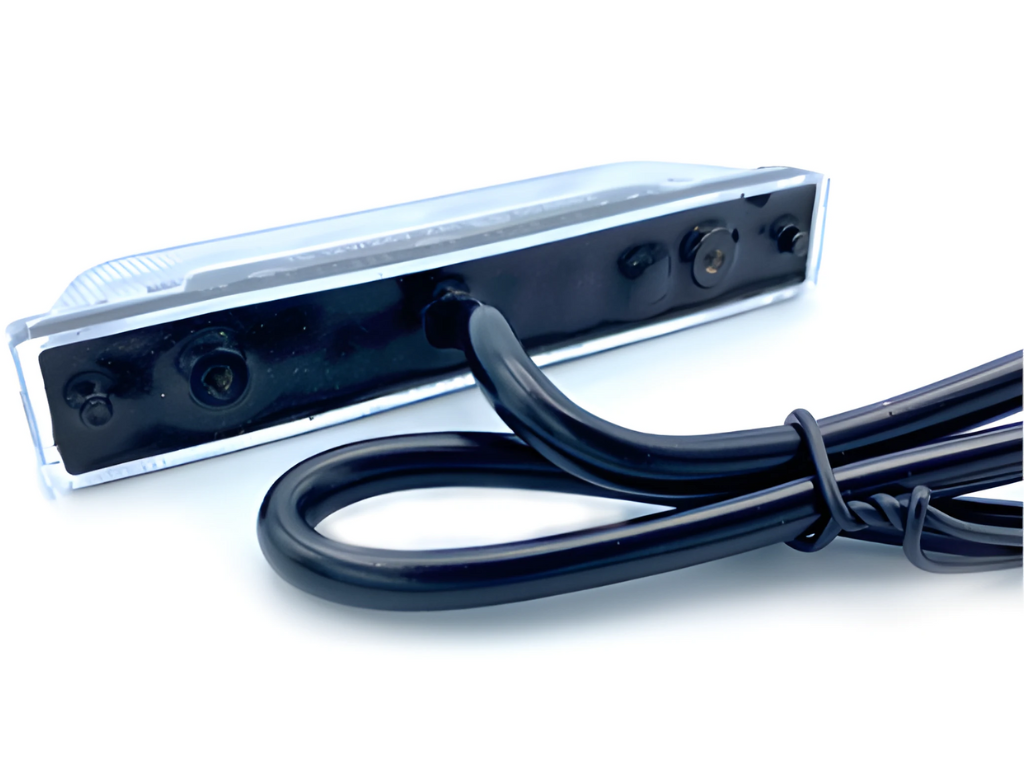

• Wire:  Red - Positive
  • Black - Negative.
  • Yellow - Flash Pattern selection & Sync (apply to black for next flash pattern).
  • White - Low-intensity mode.
• LED Colour:  Amber, Blue, White, Red.
• Up to 100,000 hours rated Long-Life LED.
• Built-in selectable flash patterns.
• Memory recall for last flash pattern used at power up.
• Weatherproof and vibration resistant.
• Aluminium base for excellent heat dissipation.
• Reverse polarity protection.
• UV-resistant lens.
• Warranty: 3 Year.

APPROVALS:
ECE EMC R10, ECE R65 Class 1, E-Marked, CE, UKCA,  IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.

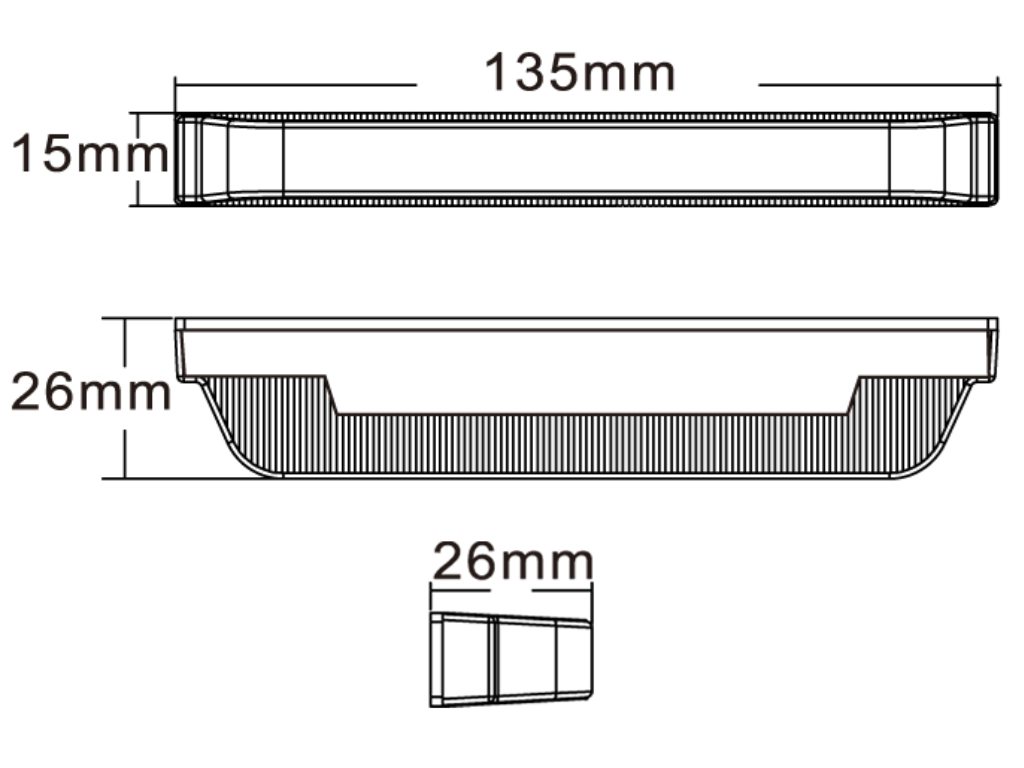

DIMENSIONS:

4 LED = W:96mm x H:15mm x D:26mm.

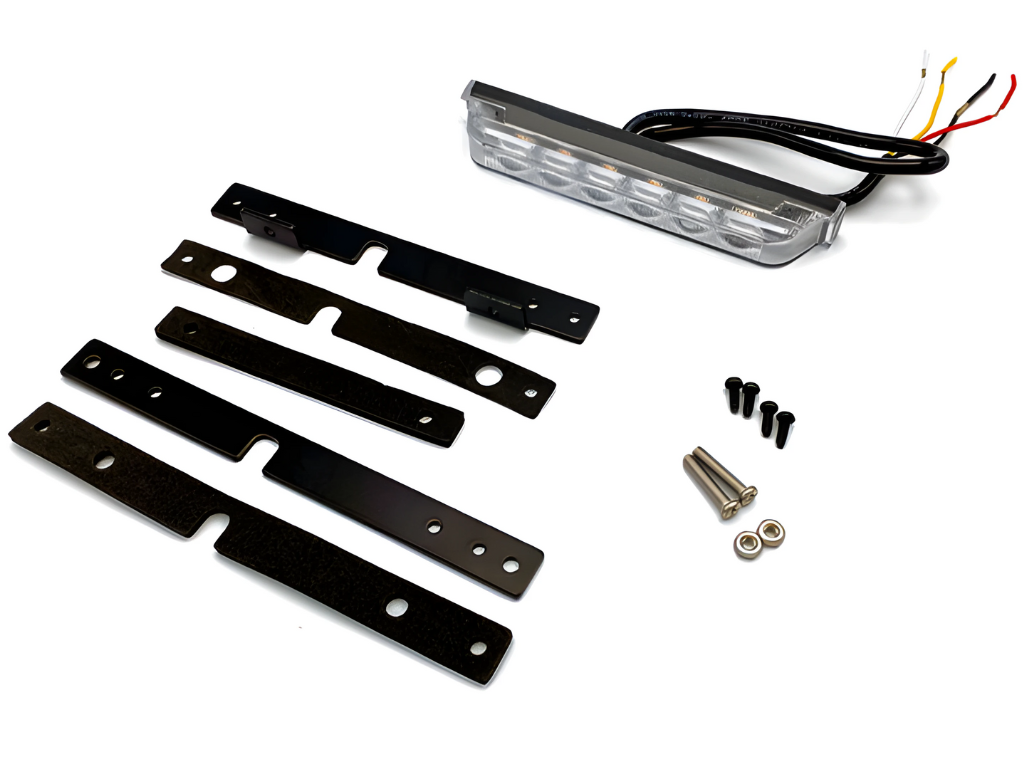

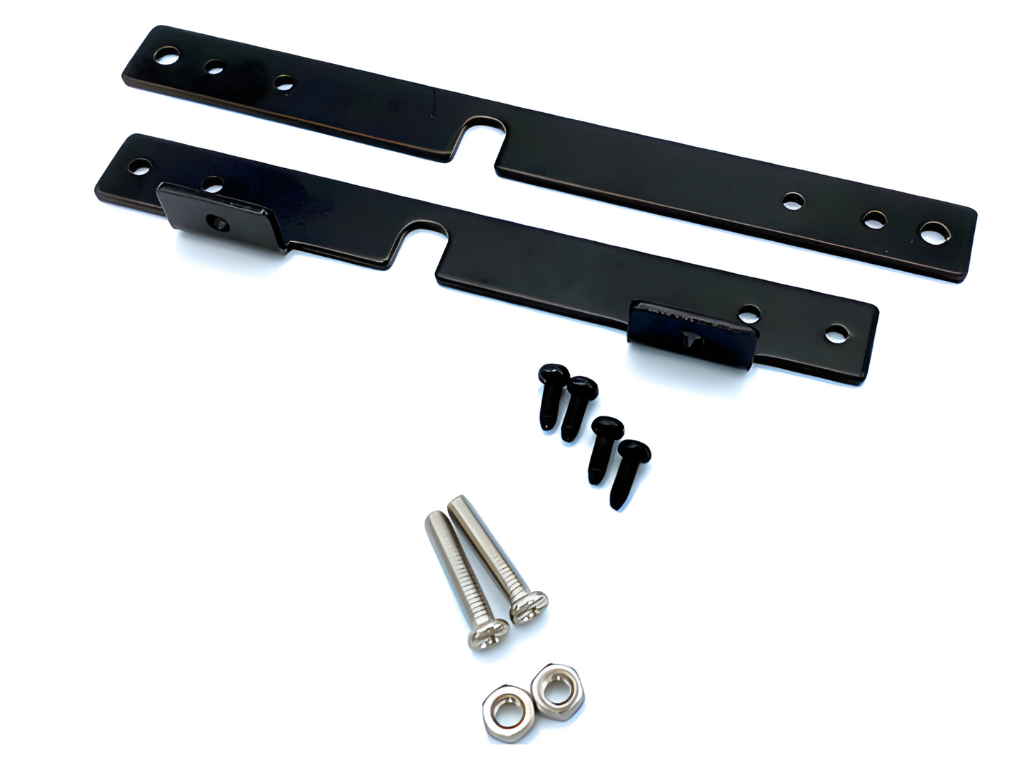

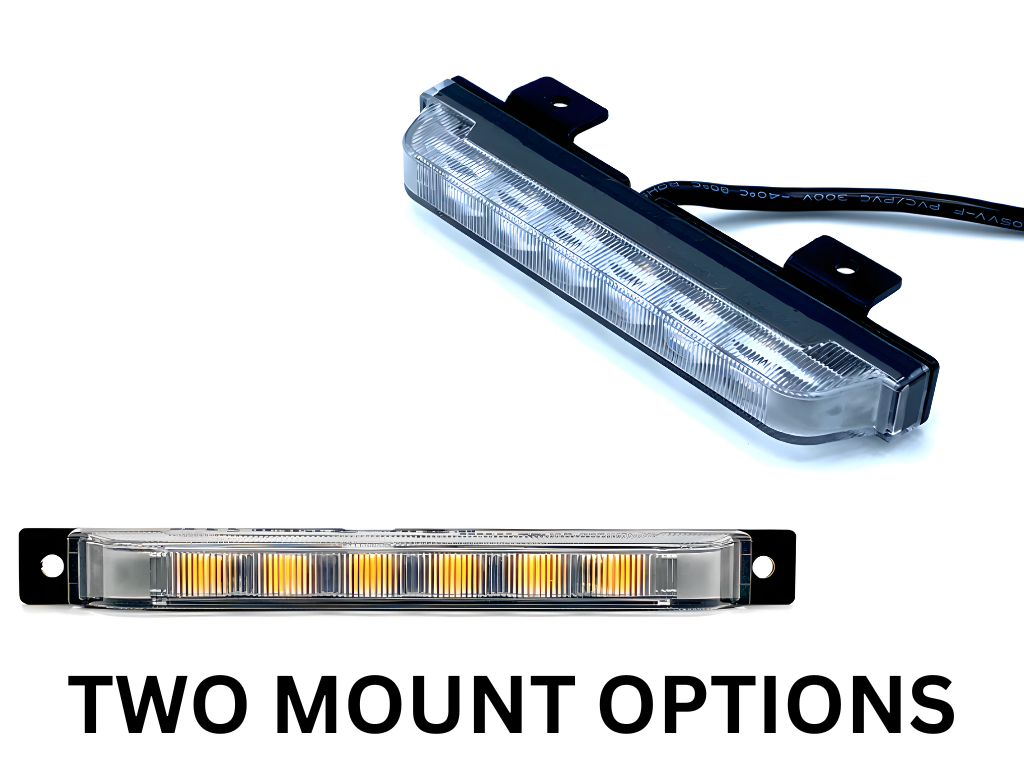

4 LED Mounting hole centres: Bracket 1: 104mm | Bracket 2: 45mm
6 LED = W:135mm x H:15mm x D:26mm.
6 LED Mounting hole centres: Bracket 1: 143mm | Bracket 2: 80mm.
